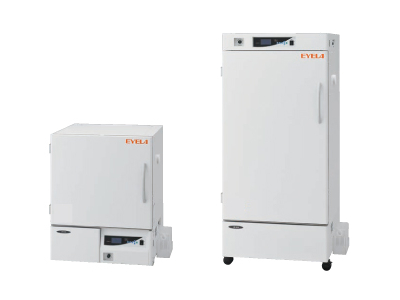

Tủ Ấm LTE-510 EYELA

(1 đánh giá)

Phạm vi kiểm soát nhiệt độ: -10 đến 60°C

Dung tích tủ: 150L

Phương pháp đối lưu: đối lưu cưỡng bức

Giá sản phẩm : Ms. An 0918 844 870

Chi tiết

Thông số kỹ thuật:

Product	Low Temperature Incubator
Model	LTE-510	LTE-1010
Cat. No.	274408	274418
Convection method	Forced convection system
Temperature control range	-10 to 60°C
Temperature control accuracy	ECO. mode:±1.5°C (with refrigerator ON-OFF control)，土0.1 to 0.2°C (with heater control), CONT. mode: 士0.1 to 0.2°C
Temperature distribution	Spatial temperature deviation 0.7°C or less, Temperature ramp 1.5°C or less (at 37°C)	Spatial temperature deviation 1.5°C or less, Temperature ramp 2.0°C or less (at 37°C)
Safety features	Earth leakage・overcurrent breaker, Variable independent overheat protector, Door switch, Refrigerator: High pressure switch, Overload relay (automatic recovery), Built-in outlet: Fuse, Condenser fan: Thermal fuse, Blower fan in chamber: Burnout prevention circuit, Temperature controller self-diagnostic function (upper and lower temperature limit alarm, heater・sensor disconnection, power failure, watch dog, refrigerator abnormal high pressure, overheat, door alarm, temperature ramp failure, heater SSR failure)
Temperature control	ECO. mode: refrigerator ON-OFF, CONT. mode: heater PID control + refrigerator continuous operation
Setting・display (temperature)	Membrane keypad digital setting・LCD digital display (min. 0.1°C)
Defrosting	Automatic defrost (auto/timer), Manual defrost
Timer	Auto-start, Auto-stop, Auto-start + Auto-stop
Program functions	1-step and 2-step programs, 24-hour cycle program, temperature ramp (up to 8 steps)
Temperature sensor	Platinum resistance thermometer Pt100 ohms
Heater	550W	700W
Refrigerator・refrigerant	Air-cooled, output 175W・R134a	Air-cooled, output 300W・R134a
Fluorescent lamp	Option
Inner chamber dimensions (mm)	600W x 500D x 500H	600W x 500D x 1000H
Chamber capacity	150L	300L
Shelf board load capacity	Uniform load max. 15kg/shelf
Shelf board material	PE coating
Number of shelf boards included	2 shelf boards	4 shelf boards
Shelf pitch・number of steps	30mm・11 steps	30mm・27 steps
Max. unit number of stacking	Two-tier	－
Exterior	Bonded steel plate, melamine resin baked coating
Interior	Stainless steel
Cable hole	1 location on the right side, 40mm ID
Built-in outlet	2 external ports, 100VAC Max. 4A	2 external ports, 100VAC Max. 2A
Ambient temperature range	5 to 35°C
Power input・supply voltage	4.6A, 1kVA・220VAC 50/60Hz	5.5A, 1.2kVA・220VAC 50/60Hz
Outer dimensions (mm)	700(808)W x 730(820)D×890H	700(808)W x 730(820)D x 1550H
Weight	Approx. 92kg	Approx. 145kg
Accessories	Fixing bracket, Drainage tank, Drainage tank rack
