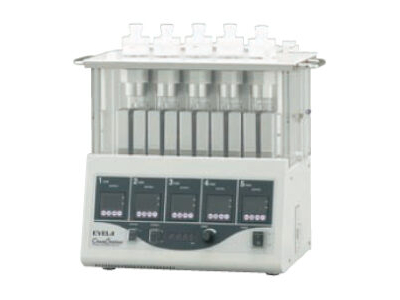

Thiết Bị Tổng Hợp Hữu Cơ PPS-3511

Product name

Personal Organic Synthesizer :  ChemiStation

Model

PPS-1511

PPS-2511

PPS-3511

Cat. No.

226460

226470

226480

Stirrer

Powerful magnetic stirrer

Reaction vessel・number of vessel

Glass・1 to 5 vessels

Synthesis scale

1 to 4mL

10 to 30mL

50 to 60mL

Temperature control range

-23 to 160℃（individual control x 5）※cooling water circulator required

-27 to 160℃（individual control x 5）※cooling water circulator required

-28 to 130℃（individual control x 5）※cooling water circulator required

Temperature control accuracy

±0.5℃

Rotation speed range

100 to 1600rpm（water 4mL: same rotation speed x 5)

100 to 1300rpm (water 30mL: same rotation speed x 5)

100 to 1100rpm (water 60mL: same rotation speed x 5)

Temperature setting ・display

Membrane keypad input・digital display (-40.0 to 160.0℃)

Temperature display resolution

0.1℃

Stirrer setting・display

Speed control knob・digital display 20 to 2000rpm)

Reagent addition

Pipette, syringe, dropping funnel (with taper joint) all allow reagent addition under inert condition

Gas displacement

By vacuuming + introduction of inert gas

Reflux

Reflux block

Observation window

By slit in aluminum block (with illumination)

Safety features

Earth leakage・overcurrent breaker, Thermal fuse, Temperature controller self-diagnostic function (variable upper temperature limit, sensor error), Double chamber, Drip receiving tray, Aluminum block loading detection, Motor overload protection

Temperature control・stirrer

Includes PPS-CTRL1 model

Reaction vessels

Test tube with rim 15 x 150Ｈ

Test tube with rim 30 x 200Ｈ

test tube with rim 35 x 200Ｈ

Wetted materials

 Glass, Teflon^®, Perfluor^® (O-ring)

Cooling water port


Hose 12mm OD (cooling hose sold separately)

Gas port

Reaction purge port: hose 9mm OD, Electric section air purge port: 6mm OD one-touch fitting

Taper joint

TS15/25

Stirring bar

Diameter 10 x 5Ｈ (cross-shaped)

Diameter 20 x 7Ｈ (cross-shaped)

Diameter 25 x 8Ｈ (cross-shaped)

Test tube adapter

Sold separately (when using vessels of different sizes)

Reaction vessel related parts

Sold separately

Drip-proof cover

Sold separately

Manifold

Sold separately

Teflon® cap

Includes PPS-15TC model

Includes PPS-25TC model

Includes PPS-35TC model

Aluminum block

Includes PPS-15A1 model

Includes PPS-25A1 model

Includes PPS-35A1 model

Double chamber

Includes PPS-15W1 model

Includes PPS-25W1 model

Includes PPS-25W1 model

Cooling cartridge

Includes PPS-15LT1 model

Includes PPS-25LT1 model

Includes PPS-25LT1 model

Ambient temperature range

5 to 35℃

Power input

6.5A, 650VA

Supply voltage

100VAC　50/60Hz

Outer dimensions (mm)

465W x 335D x 390H

465W x 335D x 440H

465W x 335D x 450H

Weight

25kg

27kg

28kg
