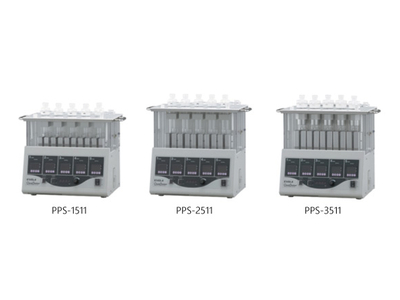

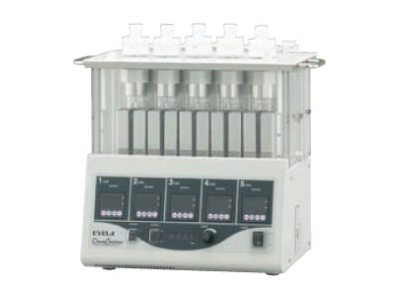

Máy Tổng Hợp Hữu Cơ PPS-1511・2511・3511
EYELA
Model: PPS-1511・2511・3511
Thang nhiệt độ: -28 - 160°C
Tốc độ khuấy: 100 – 1600 rpm
Ms. An 0918 844 870
Thông số kỹ thuật:
|
Product name |
Personal Organic Synthesizer : ChemiStation |
||
|
Model |
PPS-1511 |
PPS-2511 |
PPS-3511 |
|
Cat. No. |
226460 |
226470 |
226480 |
|
Stirrer |
Powerful magnetic stirrer |
||
|
Reaction vessel・number of vessel |
Glass・1 to 5 vessels |
||
|
Synthesis scale |
1 to 4mL |
10 to 30mL |
50 to 60mL |
|
Temperature control range |
-23 to 160℃（individual control x 5）※cooling water circulator required |
-27 to 160℃（individual control x 5）※cooling water circulator required |
-28 to 130℃（individual control x 5）※cooling water circulator required |
|
Temperature control accuracy |
±0.5℃ |
||
|
Rotation speed range |
100 to 1600rpm（water 4mL: same rotation speed x 5) |
100 to 1300rpm (water 30mL: same rotation speed x 5) |
100 to 1100rpm (water 60mL: same rotation speed x 5) |
|
Temperature setting ・display |
Membrane keypad input・digital display (-40.0 to 160.0℃) |
||
|
Temperature display resolution |
0.1℃ |
||
|
Stirrer setting・display |
Speed control knob・digital display 20 to 2000rpm) |
||
|
Reagent addition |
Pipette, syringe, dropping funnel (with taper joint) all allow reagent addition under inert condition |
||
|
Gas displacement |
By vacuuming + introduction of inert gas |
||
|
Reflux |
Reflux block |
||
|
Observation window |
By slit in aluminum block (with illumination) |
||
|
Safety features |
Earth leakage・overcurrent breaker, Thermal fuse, Temperature controller self-diagnostic function (variable upper temperature limit, sensor error), Double chamber, Drip receiving tray, Aluminum block loading detection, Motor overload protection |
||
|
Temperature control・stirrer |
Includes PPS-CTRL1 model |
||
|
Reaction vessels |
Test tube with rim 15 x 150Ｈ |
Test tube with rim 30 x 200Ｈ |
test tube with rim 35 x 200Ｈ |
|
Wetted materials |
Glass, Teflon®, Perfluor® (O-ring) |
||
|
Cooling water port |
|
||
|
Gas port |
Reaction purge port: hose 9mm OD, Electric section air purge port: 6mm OD one-touch fitting |
||
|
Taper joint |
TS15/25 |
||
|
Stirring bar |
Diameter 10 x 5Ｈ (cross-shaped) |
Diameter 20 x 7Ｈ (cross-shaped) |
Diameter 25 x 8Ｈ (cross-shaped) |
|
Test tube adapter |
Sold separately (when using vessels of different sizes) |
||
|
Reaction vessel related parts |
Sold separately |
||
|
Drip-proof cover |
Sold separately |
||
|
Manifold |
Sold separately |
||
|
Teflon® cap |
Includes PPS-15TC model |
Includes PPS-25TC model |
Includes PPS-35TC model |
|
Aluminum block |
Includes PPS-15A1 model |
Includes PPS-25A1 model |
Includes PPS-35A1 model |
|
Double chamber |
Includes PPS-15W1 model |
Includes PPS-25W1 model |
Includes PPS-25W1 model |
|
Cooling cartridge |
Includes PPS-15LT1 model |
Includes PPS-25LT1 model |
Includes PPS-25LT1 model |
|
Ambient temperature range |
5 to 35℃ |
||
|
Power input |
6.5A, 650VA |
||
|
Supply voltage |
100VAC 50/60Hz |
||
|
Outer dimensions (mm) |
465W x 335D x 390H |
465W x 335D x 440H |
465W x 335D x 450H |
|
Weight |
25kg |
27kg |
28kg |
