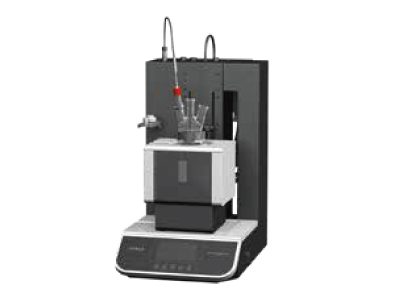

Máy tổng hợp hữu cơ cá nhân PPX-1000

Product name

Personal Organic Synthesizer :  Single Master

Model

PPX-1000

Cat. No.

283040

Reaction method

Batch type and flow type (CSTR) are available by selecting options

Stirring method

Stirrer (sold separately), Impeller (sold separately)

Number of reaction vessel

1 pc

Synthesis scale

Max. 150mL (reaction vessel and glass parts are sold separately)

Temperature control range

-40.0°C to 180.0°C (thermostatic chamber). It requires connection to low temperature circulator, such as our CCA model or another suitable chiller

Temperature control accuracy

±0.1°C (thermostatic chamber temperature value)

Rotation speed range

Stirrer unit (sold separately)

High: 0, 125 to 1000rpm, max. shaft torque 19.6mN・m
Middle: 0, 32 to 250rpm, max. shaft torque 68.6ｍN・ｍ
Low: 0, 8 to 63rpm, max. shaft torque 196ｍN・ｍ

Rotation speed range Impeller unit (sold separately)

0, 100 to 2000rpm

Setting・display

Membrane keypad input・color TFT LCD display (4.3″), LED display bar (color display)

Temperature resolution

0.1℃

Temperature control

Heating and cooling PID control, Selectable internal vessel temperature control (optional liquid temperature sensor required), External temperature control, Fixed value control, Ramp control

Dosage control

Syringe pump unit PPX-10SS (sold separately): Total dosage volume (mL), Dosage time (min), Dosage temperature range (°C), Auto/Manual

Continuous addition control

Plunger pump EUI-22-110P (sold separately): Constant flow (0 to 9.99 mL/min)

Additional function

End temperature setting, PID constant change, Motor selection, Pump selection, Japanese/English (switchable display)

Chamber elevation function

Manual vertical slide (stroke 114mm, with lock mechanism)

Data record・report

Recorded data is output in csv format from USB Type-a connector to USB memory (sold separately), Format: FAT32

Observation window

With observation window

Liquid temperature measurement

Liquid temperature sensor PT-1000S・H・T (sold separately)

Safety features

Reaction part drips receiving structure, Earth leakage breaker, Overcurrent protection (fuse), Lightning surge protection, Motor overload protection, Upper and lower temperature limiter settings, Temperature sensor disconnection detection, Thermostatic chamber temperature sensor error detection, Fixed temperature overheat protector (thermostatic chamber 195°C・water-cooled Peltier element 45°C)

Heating・cooling method

Heater 200W ・ Water-cooled Peltier element Max.250W

Temperature sensor

Platinum resistance thermometer Pt1000Ω

Temperature control・stirring unit

Temperature control unit included・stirring is optional

Reaction vessels

ChemStation PPV 150mL vessel  with 60mm OD (sold separately)

Wetted part material

Glass, PTFE, PEEK, FFKM (depending on vessel type)

Cooling water connection diameter

10.5mm OD hose port

Ambient temperature range

5 to 35℃

Power input

8A, 800VA

Supply voltage

100 to 240VAC  50/60Hz

Outer dimensions (mm)

301(315)W x 444(511)D x 518(526)H

Weight

Approx. 23kg
