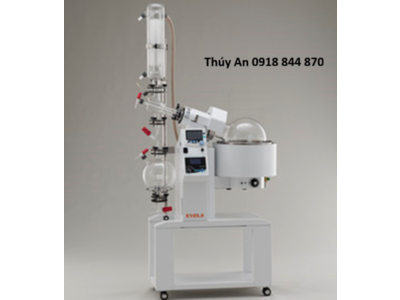

Máy Cô Quay 10 Lít N-3100
EYELA
- Độ bền vượt trội cho môi trường phòng thí nghiệm năng suất cao
- Điều khiển nhạy bén vượt trội cho quá trình chưng cất nhạy cảm
- Máy cô quay chân không cỡ trung bình
- Đi kèm bình chứa mẫu 10L tiêu chuẩn
Ms. An 0918 844 870
Thông tin chi tiết:
|
Product name |
Rotary Evaporator |
| Model | N-3100 |
| Cat. No. | 280748 |
| Stand | Standard accessory |
| Rotation speed range | 10 to 140rpm, stepless speed control |
| Evaporation capacity | Max. 3.5L/h (water evaporation) |
| Ultimate vacuum | 2.6hPa (2Torr) or less |
| Bath temperature control range | RT＋10 to 180℃（For water/oil） |
| Bath temperature accuracy | ±1℃（when using water and rotating the sample flask) ±3℃（when using oil and rotating the sample flask) |
| Temperature control | PID control |
| Temperature setting / display | Digital setting (membrane keypad input, minimum setting unit: 1°C); LCD display shows bath temperature, bath medium, and vapor temperature (optional) |
| Rotation setting / display | Digital setting (speed control input, minimum setting unit: 10 rpm); LCD display shows sample flask rotation speed |
| Vacuum control function | Fixed value control (1 to 760mmHg / 1 to 1013hPa); program control (pre-set for representative solvents); auto control (when vapor sensor is used: optional); step control |
| Safety features | Rotating motor overcurrent protection, Liquid-expansion-type independent overload protector, Earth leakage breaker, Jack overload protection, Safety cover on one-touch clamp section, Float switch for preventing dry heating |
| Bath jack | Motorized automatic jack |
| Heater | For temperature control 3.5kW |
| Motor | 90 W induction motor (inverter controlled) |
| Condenser | Vertical triple-spiral type; cooling surface: 0.5m² (suction / cooling water threaded connection, S65 ball-taper joint, 16mm hose nozzle) |
| Sample flask | 10L round bottom flask (mouth diameter: 100mm) |
| Receiving flask | 5 L round bottom flask × 1 pc, with drain valve |
| Vacuum seal | Teflon® vacuum seal |
| Bath dimensions / capacity / material | 360 ID x 200mm H / 20L / stainless steel |
| Jack stroke | 150mm |
| Connection port diameter | Condenser (Cooling water nozzle 16mm OD / suction nozzle 16mm OD) Vacuum control valve (Connection nozzle 13 mm OD / Vacuum control solenoid valve: nozzle 10mm OD) |
| Ambient temperature range | 5 to 35°C |
| Outer dimensions (mm) | 930W x 450D x 1890H |
| Weight | Approx. 103kg |
| Power input ・supply voltage | 17A, 3.9kVA / 230VAC, single phase, 50/60 Hz |
| Power utility | 230VAC, single phase, 23 A |
